AiM dashes and dash loggers are designed to acquire and display data coming from your ECU, as well as from the GPS09c included in the kit (dash loggers version only), analog/digital inputs and predefined math channels. Performance and data acquired can also be increased adding up to eight expansion modules.

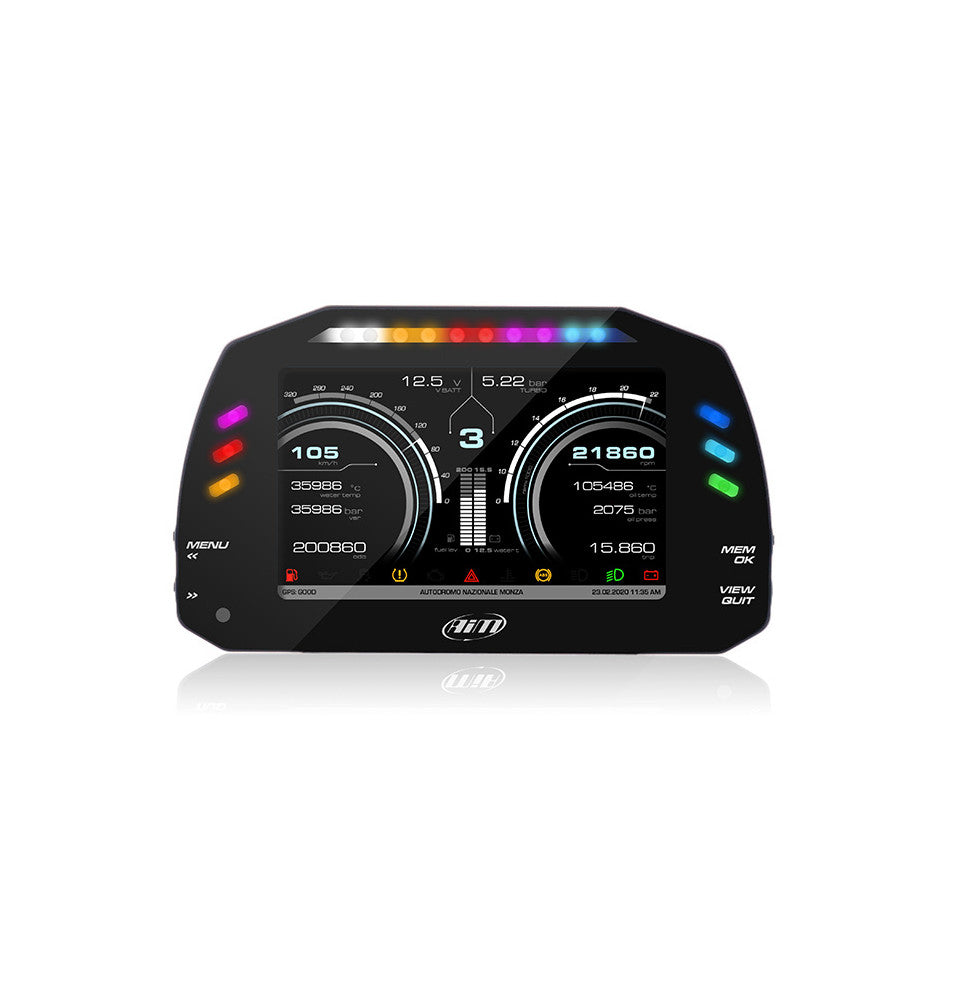

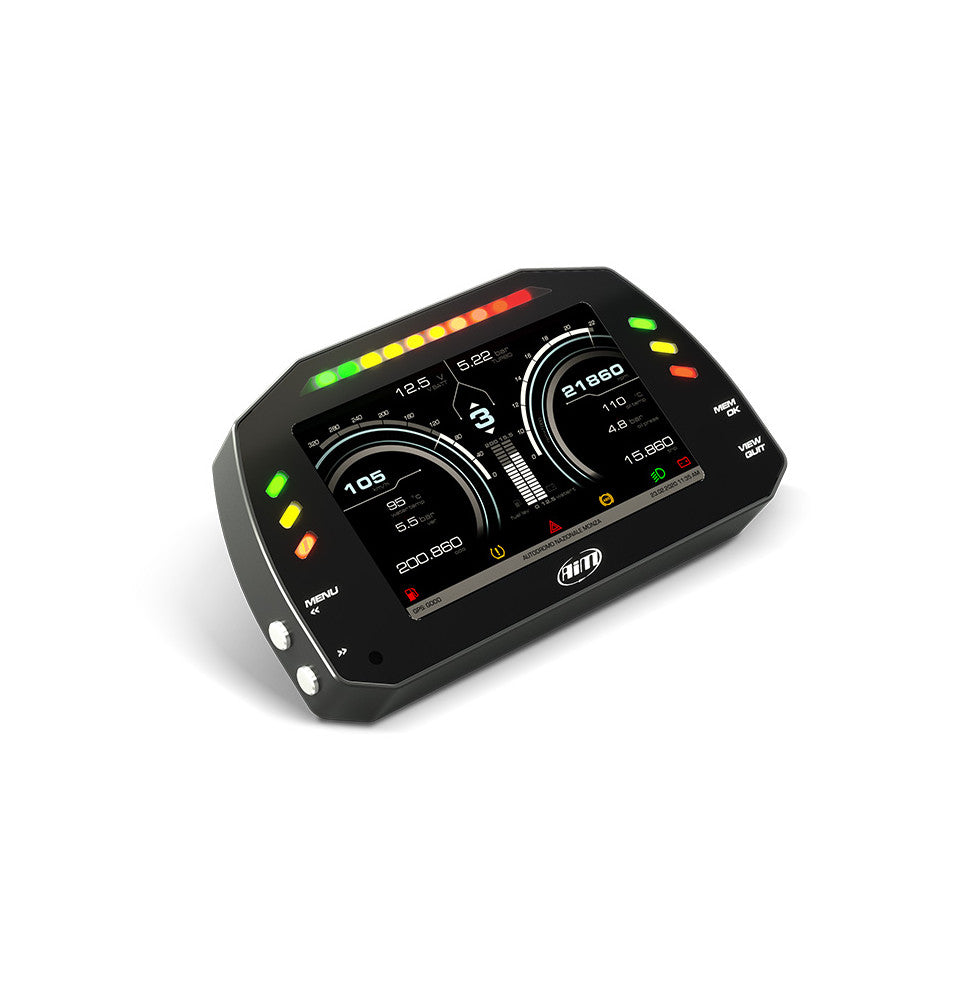

5" TFT display, resolution 800x480 pixels, contrast 600:1, 6 configurable RGB alarm LEDs, integrated 10 RGB LED shift light array, 2 Motorsport connectors + 1 Binder
connector, 3 CAN connections, CAN, RS232, K-Line connection to 2,000+ industry leading ECUs, 8 analog/digital inputs at a max of 500 Hz each, 4 digital speed inputs, coil RPM input, lap signal input, 2 digital output, inertial platform, fully configurable math channels, 802.11 Wi-Fi connection, IP67.
In the box:

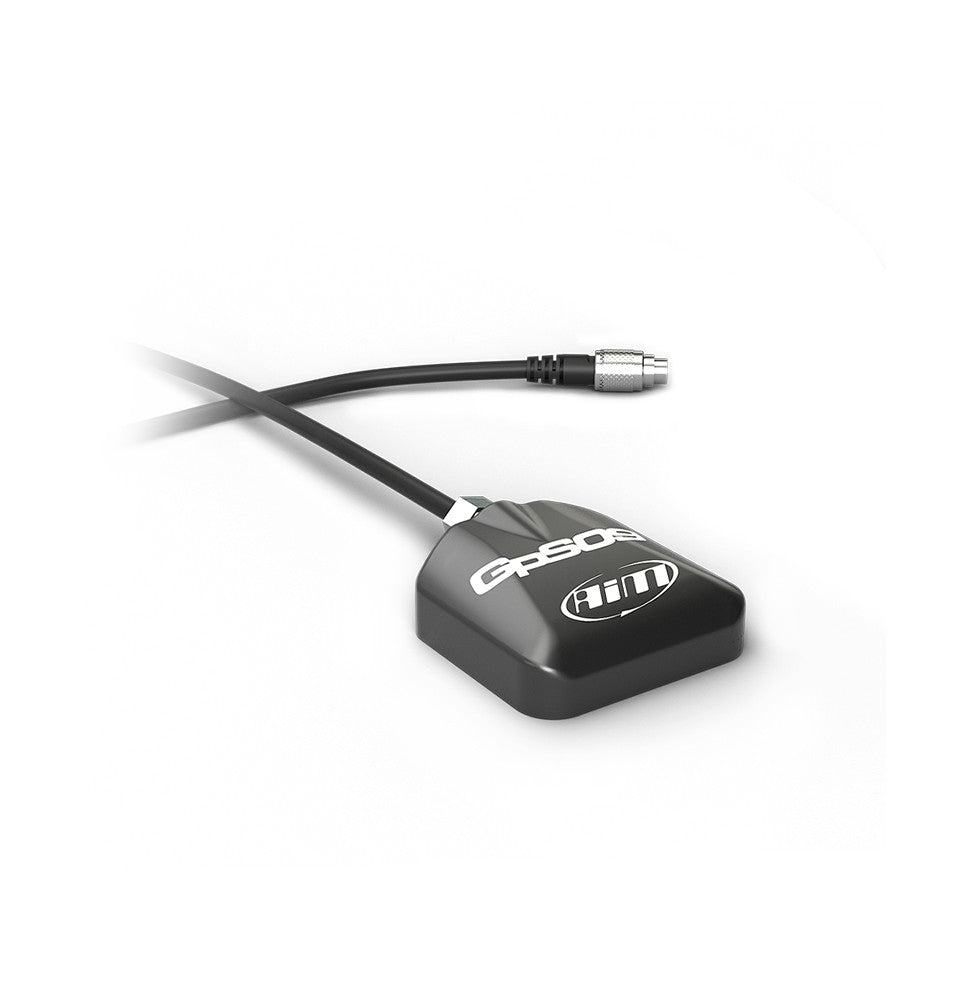

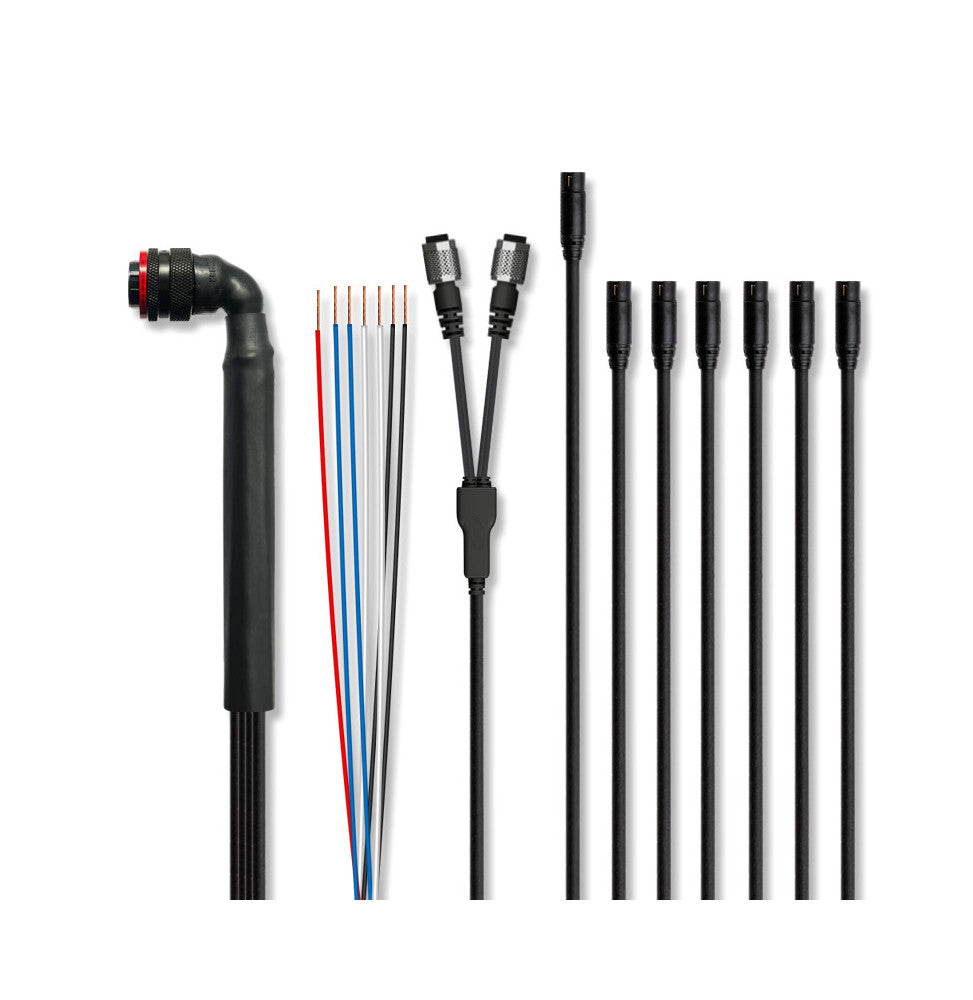

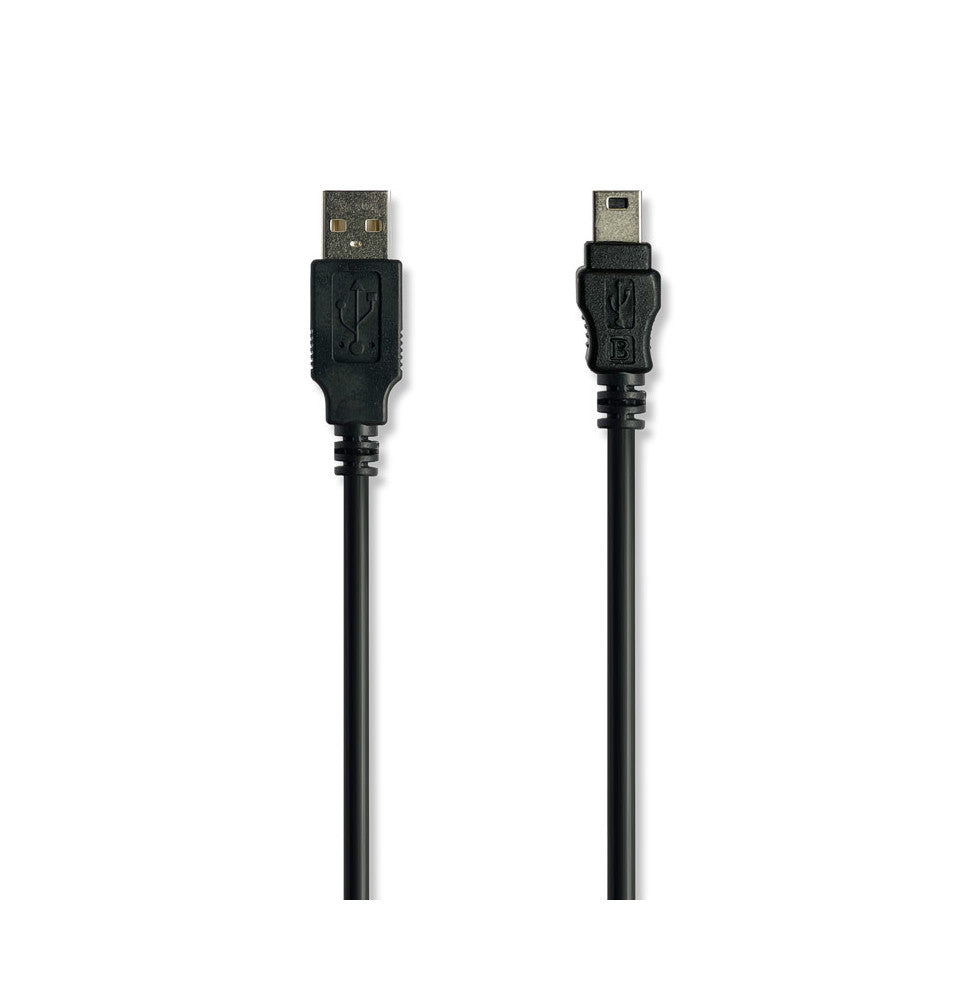

MXS 1.3, GPS with cable, USB cable, 37 pins standard harness.
User manual & RaceStudio 3 software freely downloadable.
